Double Flat Head Drill Point

Double Flat Head Drill Point

  • Material:C10B21
  • Coating:Zinc, Yellow Zinc
加入詢價 詢價清單 (0)

Dimensions (dXL) mm
5.0 X 40 6.0 X 40 8.0 X 50 10.0 X 50
5.0 X 50 6.0 X 50 8.0 X 60 10.0 X 60
5.0 X 60 6.0 X 60 8.0 X 80 10.0 X 80
5.0 X 80 6.0 X 80 8.0 X 100 10.0 X 100
5.0 X 100 6.0 X 100 8.0 X 120 10.0 X 120
5.0 X 120 6.0 X 120 8.0 X 140 10.0 X 140
5.0 X 140 6.0 X 140 8.0 X 160 10.0 X 160
5.0 X 160 6.0 X 160 8.0 X 180 10.0 X 180
5.0 X 180 6.0 X 180 8.0 X 200 10.0 X 200
5.0 X 200 6.0 X 200 8.0 X 220 10.0 X 220
  6.0 X 220 8.0 X 240 10.0 X 240
  6.0 X 240 8.0 X 260 10.0 X 260
  6.0 X 260 8.0 X 280 10.0 X 280
  6.0 X 280 8.0 X 300 10.0 X 300
  6.0 X 300 8.0 X 320 10.0 X 320
    8.0 X 340 10.0 X 340
    8.0 X 360 10.0 X 360
    8.0 X 380 10.0 X 380
    8.0 X 400 10.0 X 400

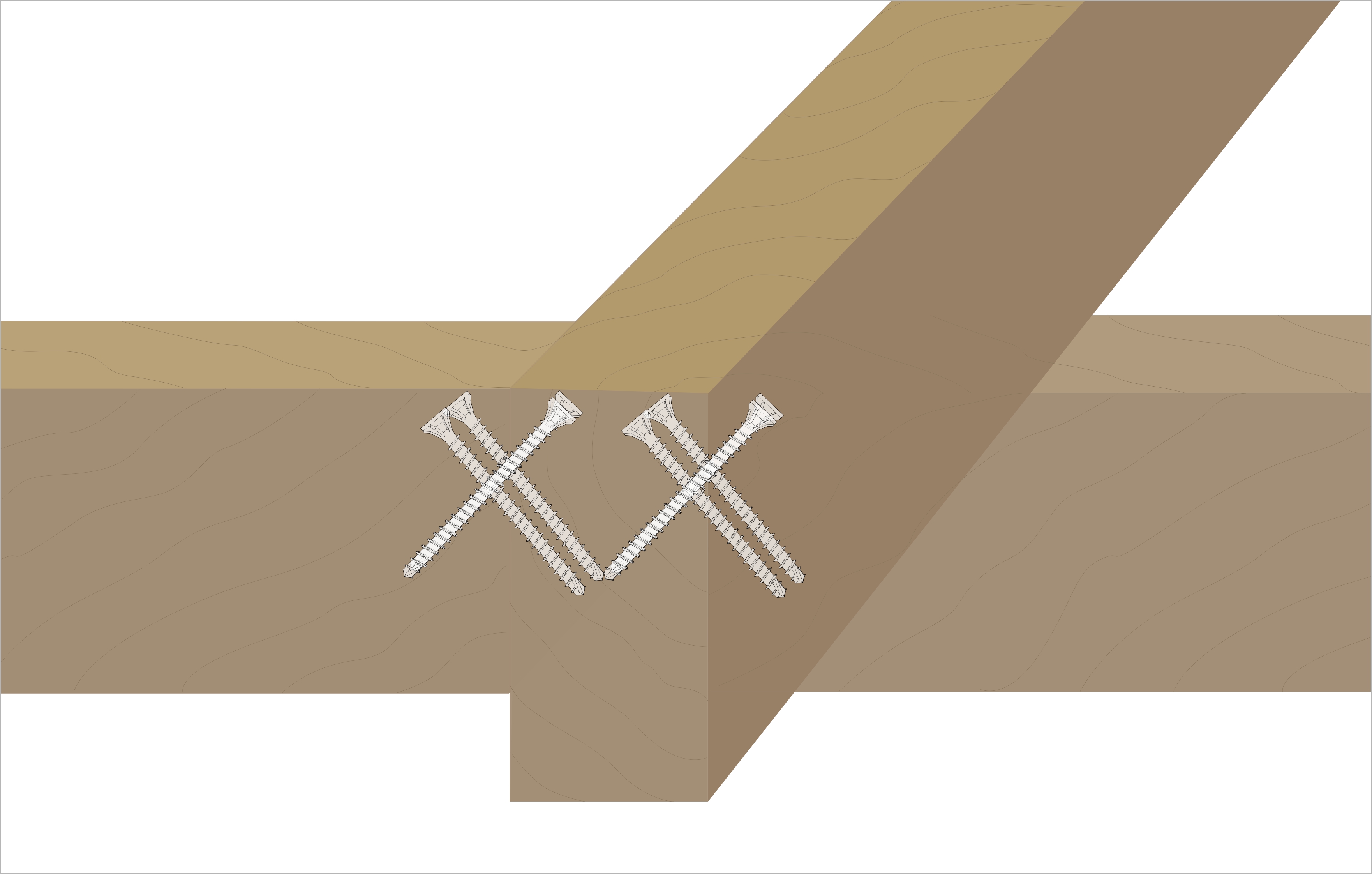

        Installation diagram
