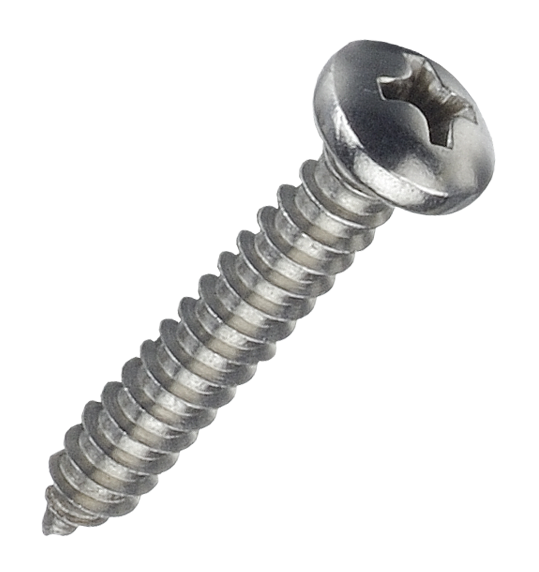

| Dimensions (dXL) mm | |||||
|---|---|---|---|---|---|
| 3.5 X 13 | 3.9 X 13 | 4.2 X 13 | 4.8 X 13 | 5.5 X 16 | |
| 3.5 X 16 | 3.9 X 16 | 4.2 X 16 | 4.8 X 16 | 5.5 X 19 | |
| 3.5 X 19 | 3.9 X 19 | 4.2 X 19 | 4.8 X 19 | 5.5 X 25 | |
| 3.5 X 25 | 3.9 X 25 | 4.2 X 25 | 4.8 X 25 | 5.5 X 32 | |
| 3.5 X 32 | 3.9 X 32 | 4.2 X 32 | 4.8 X 32 | 5.5 X 38 | |
| 3.9 X 38 | 4.2 X 38 | 4.8 X 38 | 5.5 X 50 | ||
| 4.2 X 50 | 4.8 X 50 | 5.5 X 63 | |||
| 4.8 X 63 | 5.5 X 75 | ||||
| 3.5 mm | 3.9 mm | 4.2 mm | 4.8 mm | 5.5 mm | ||
|---|---|---|---|---|---|---|
| Torsional Strength (Lb/in) |
13 min | 30 min | 39 min | 56 min | 88 min | |
| Case Hardness (Hv/0.3kg) |
500-800 | 500-800 | 500-800 | 500-800 | 500-800 |

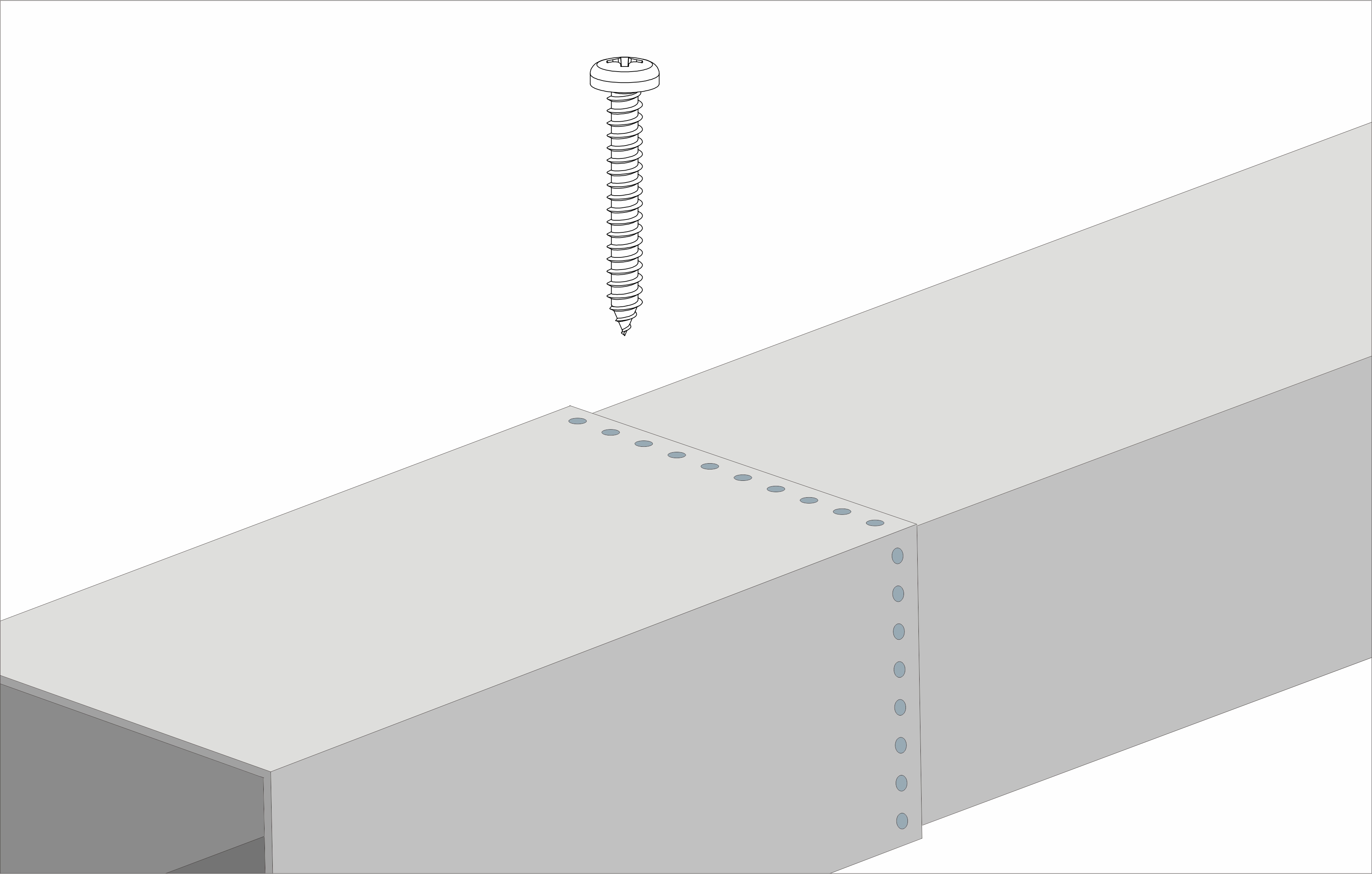

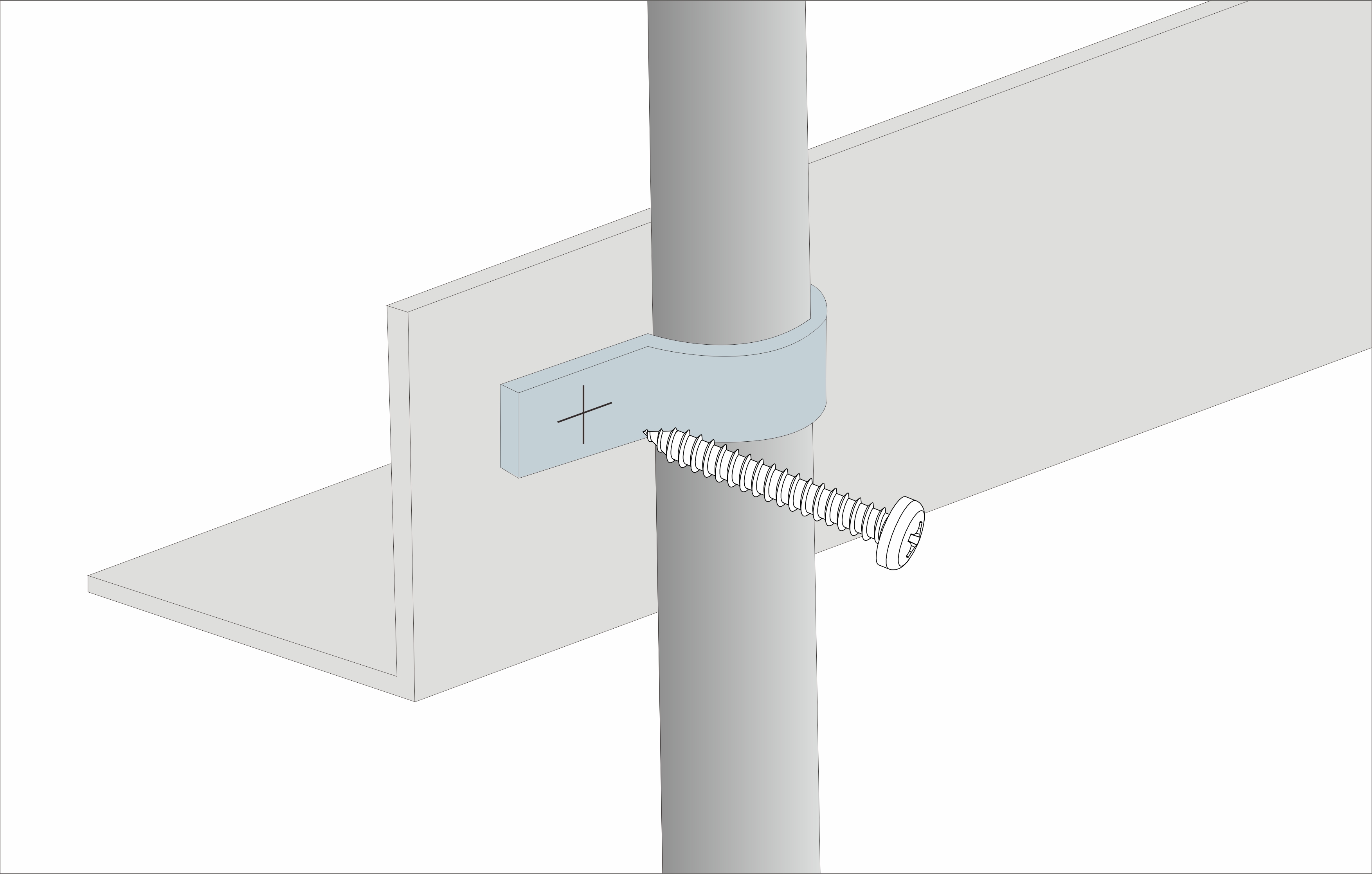

Installation diagram
‧ For attach thin metal or plastic material.
