| Dimensions (dXL) mm | |||||
|---|---|---|---|---|---|
| 3.5 X 9.5 | 3.9 X 11 | ||||
| 3.5 X 11 | 3.9 X 13 | ||||
| 3.5 X 13 | |||||
| 3.5 mm | 3.9 mm | |||||
|---|---|---|---|---|---|---|
| Torsional Strength (Lb/in) |
24 min | 28 min | ||||
| Case Hardness (Hv/0.3kg) |
560-730 | 560-730 | ||||
| Drilling Time (Sec) |
4.0 | 4.0 | ||||
| Drilling Thickness | 1+1 | 1+1 | |

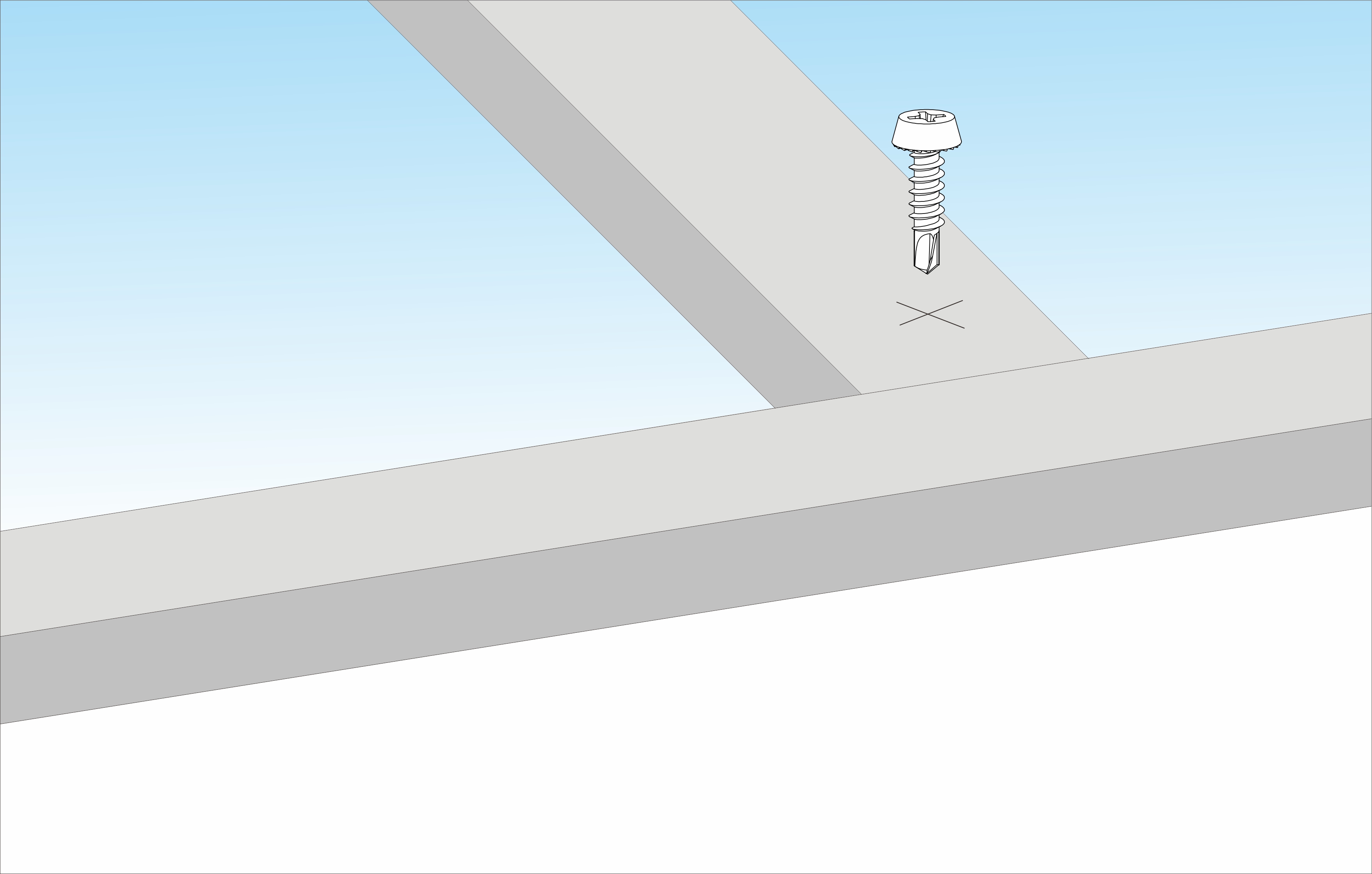

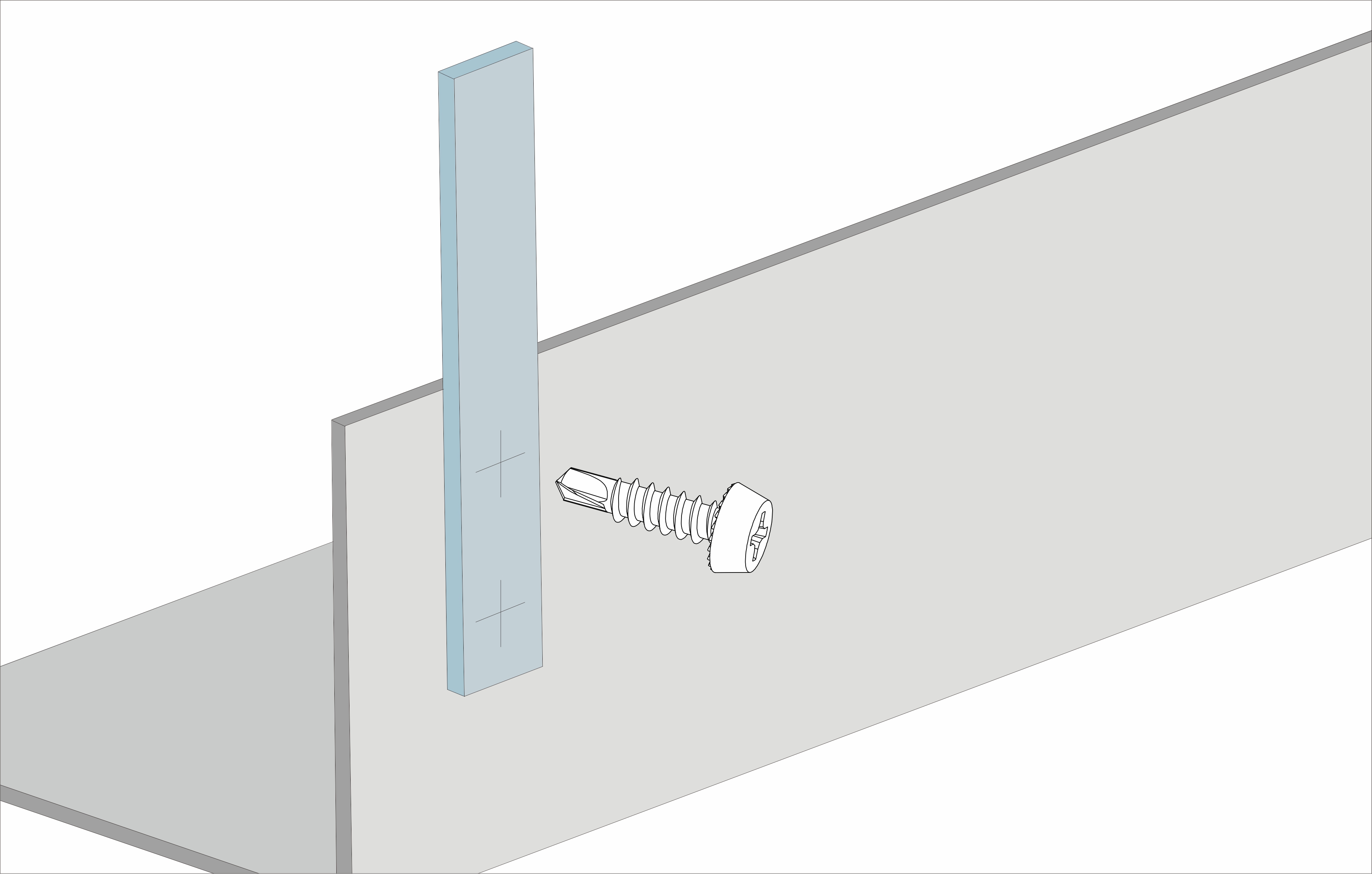

Installation diagram
‧ For attaching metal to matel application like fixtures, backup plates, and door frames.
