Dimensions (dXL) mm | |||||
---|---|---|---|---|---|
M6 X 60 | M6 X 100/45 | ||||
M6 X 80 | M6 X 120/45 | ||||
M6 X 100 | M6 X 150/45 | ||||
M6 X 120 | M6 X 180/45 | ||||
M6 X 150 | |||||
M6 X 180 | |||||
M6 X 200 | |||||
M6 X 250 | |||||
M6 X 300 |

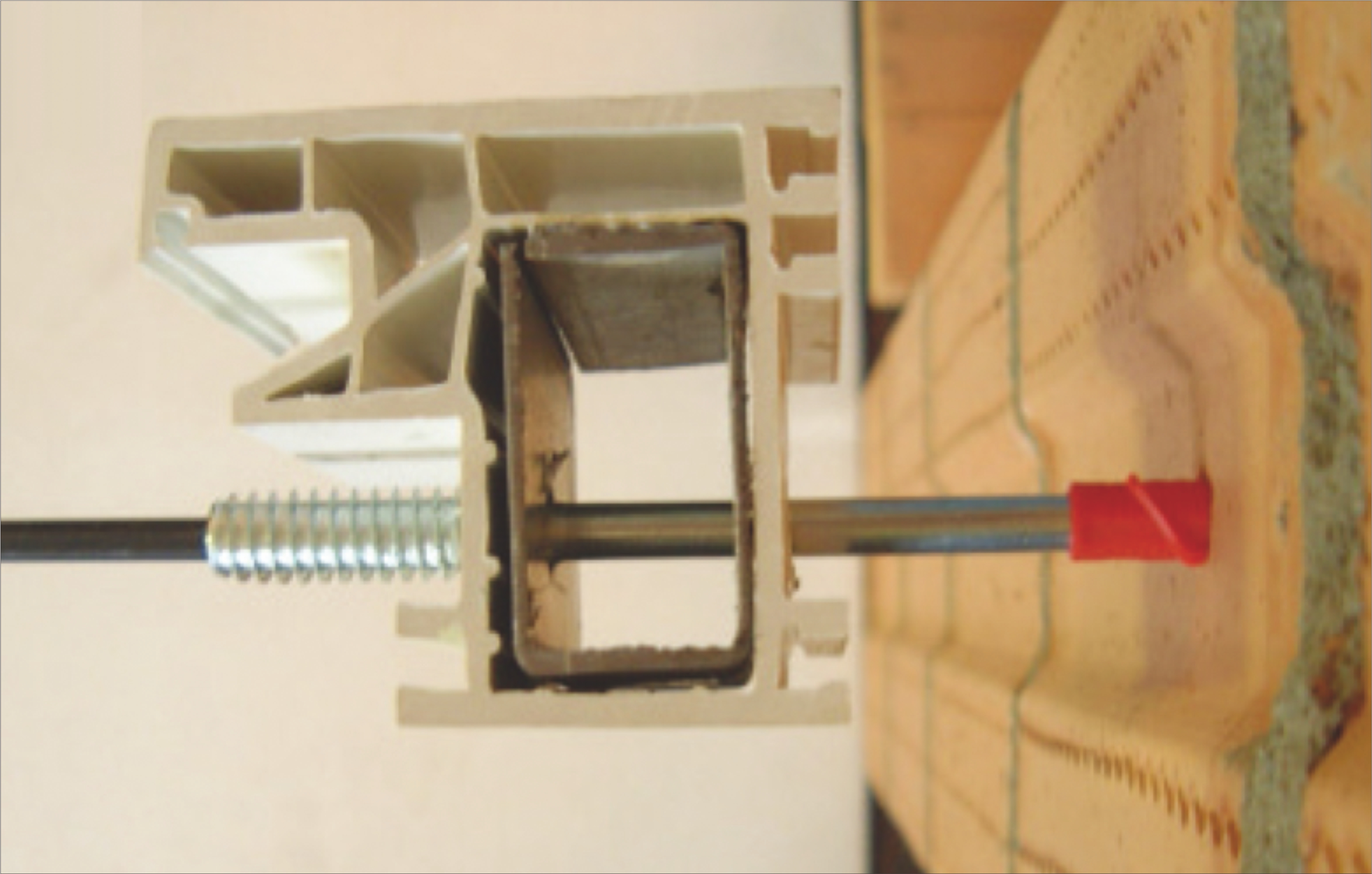

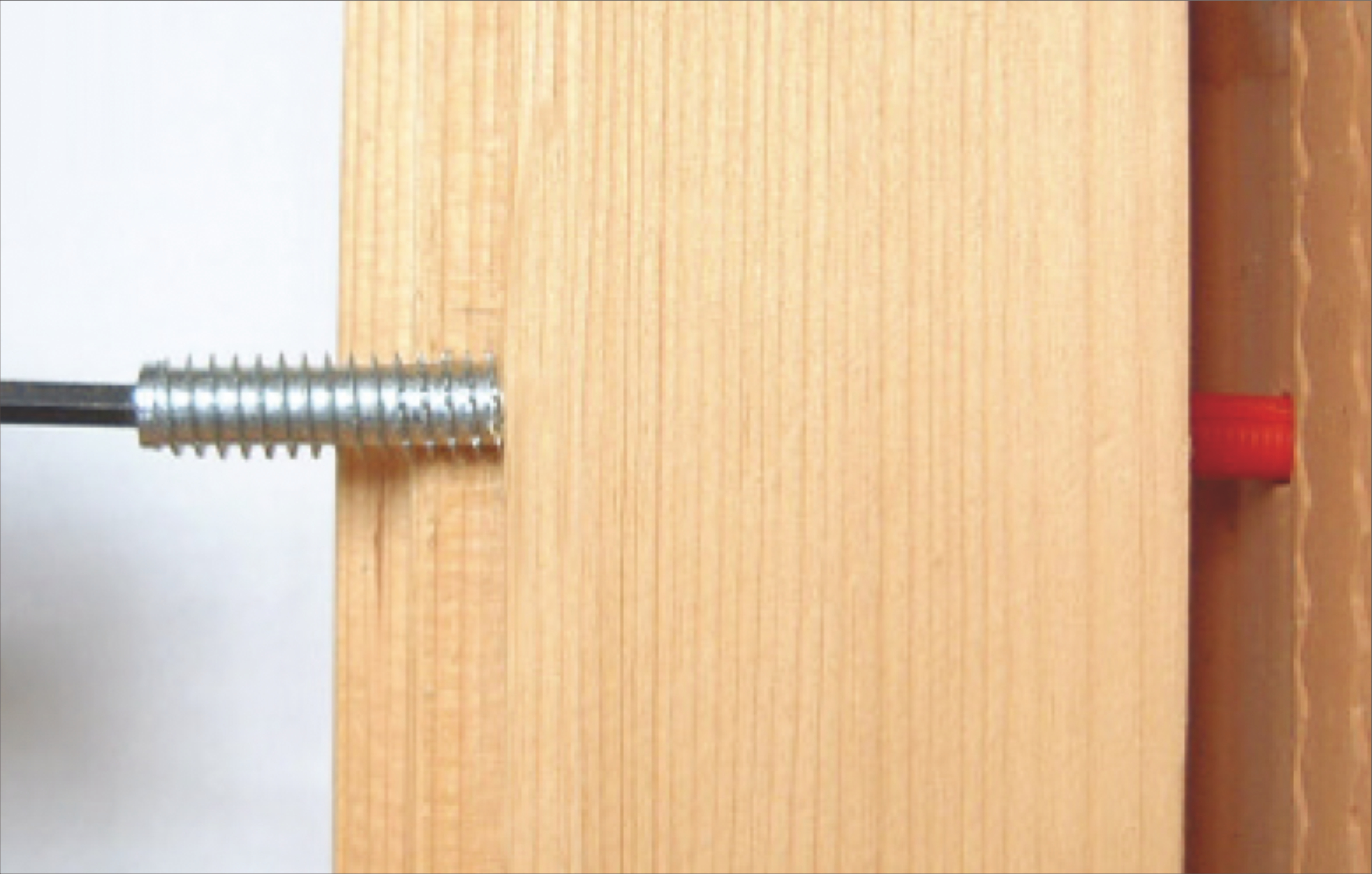

Installation diagram

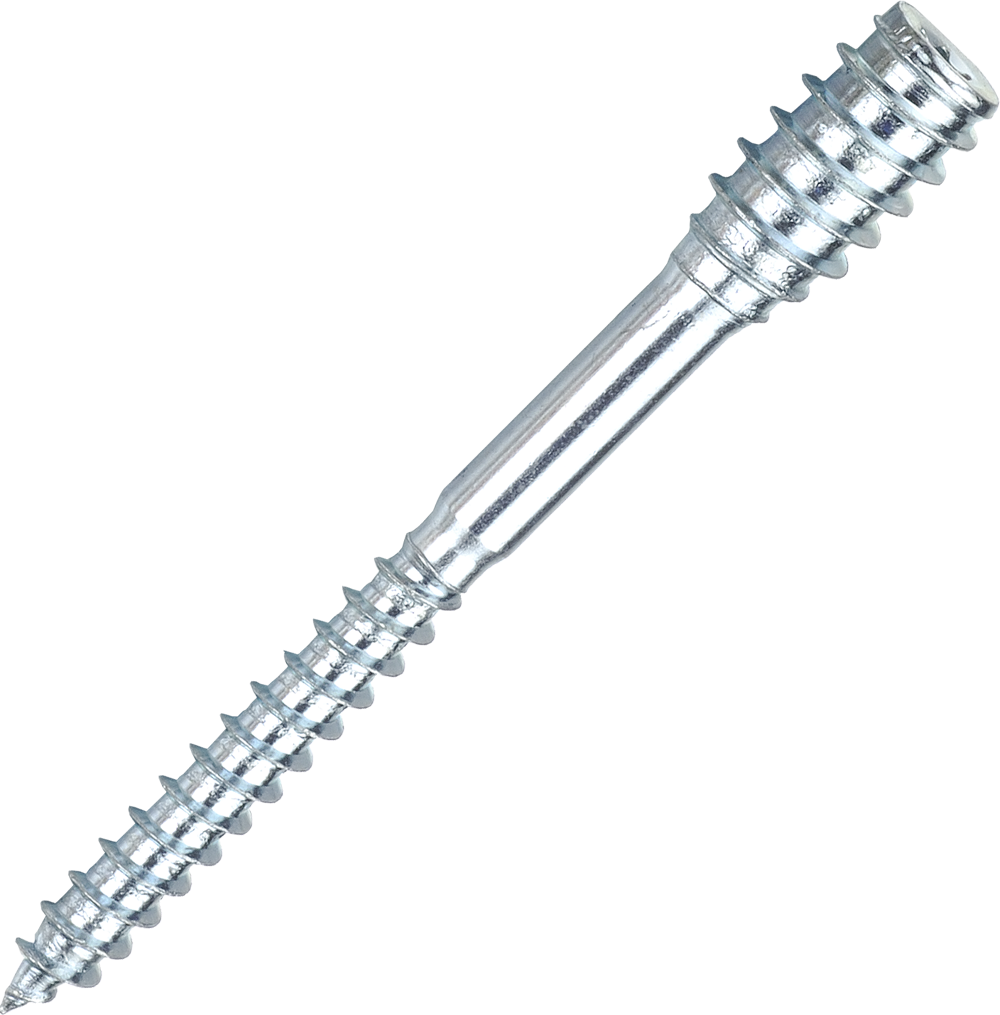

‧Thread section canbe insert into a base member, a head section which can be introduced into structural member and has a thread and a shank section arranged in between.
