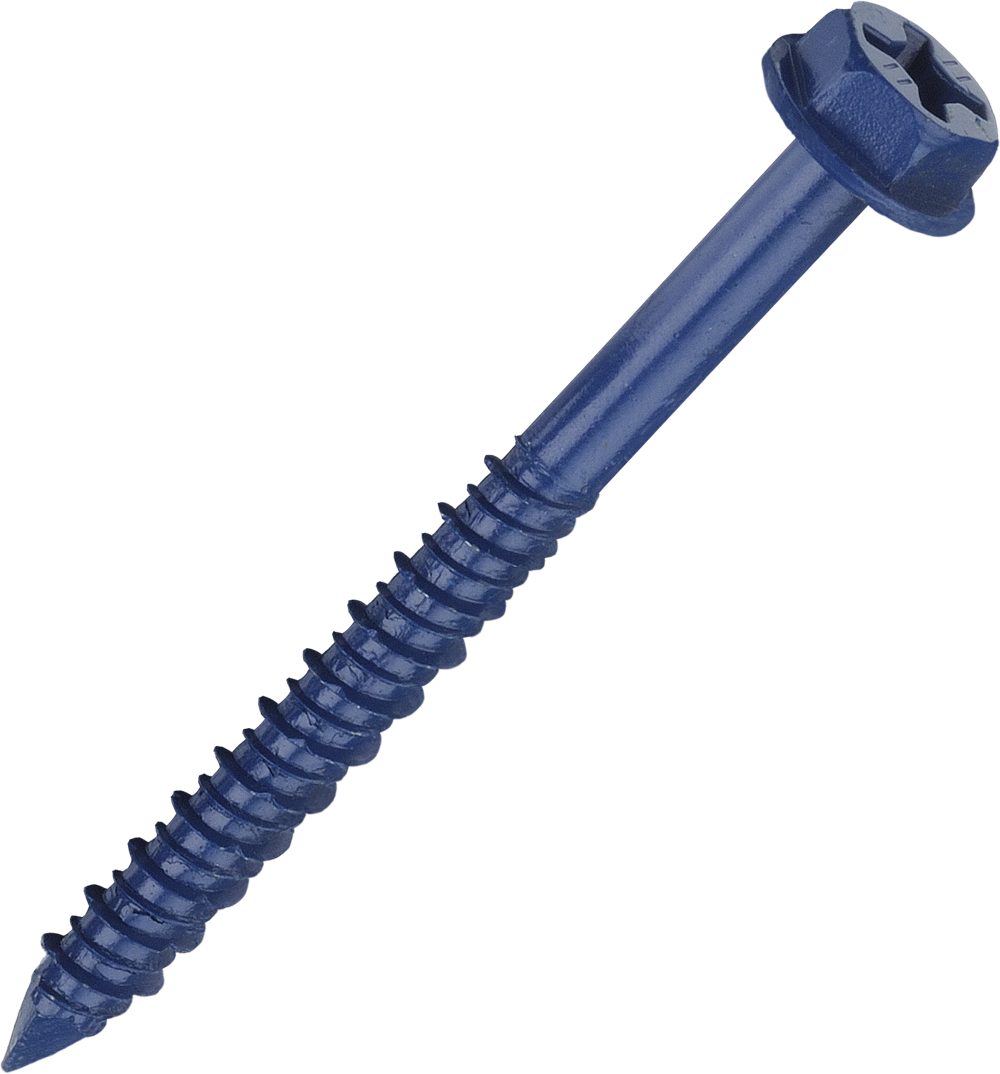

Hex Washer Head - Concrete Screws

Hex Washer Head - Concrete Screws

  • Material:C1022
  • Coating:Ruspert Blue
Add to Inquiry Inquiry List (0)

Dimensions (dXL) mm
   4.8 X 32        6.3 X 32    3/16 X 1-1/4  1/4 X 1-1/4
4.8 X 45 6.3 X 45 3/16 X 1-3/4 1/4 X 1-3/4
4.8 X 55 6.3 X 55 3/16 X 2-1/4 1/4 X 2-1/4
4.8 X 70 6.3 X 70 3/16 X 2-3/4 1/4 X 2-3/4
4.8 X 80 6.3 X 80 3/16 X 3-1/4 1/4 X 3-1/4
4.8 X 95 6.3 X 95 3/16 X 3-3/4 1/4 X 3-3/4
4.8 X 100 6.3 X 100 3/16 X 4 1/4 X 4



  4.8 mm 6.3 mm
 Torsional Strength
(Lb/in)
88 min 142 min
 Case Hardness
(Hv/0.3kg)
560 min 560 min
 Core Hardness
(Hv)
240 - 425 240 - 425



    Installation diagram



‧Suitable for soft brick, and for plywood backer boards to masonry.
