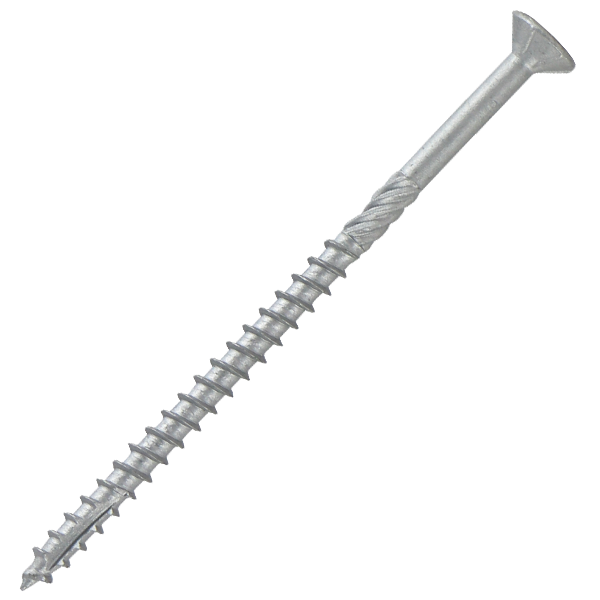

Double Flat Head With Knurl
- Material:C1022, SS304
- Coating:Zinc, Passivated, Ruspert Coating
| Dimensions (dXL) mm | |||||
|---|---|---|---|---|---|
| 3.0 X 40 | 4.0 X 40 | 4.5 X 40 | 5.0 X 40 | 6.0 X 40 | |
| 4.0 X 45 | 4.5 X 45 | 5.0 X 45 | 6.0 X 50 | ||
| 4.0 X 50 | 4.5 X 50 | 5.0 X 50 | 6.0 X 60 | ||
| 4.0 X 60 | 4.5 X 60 | 5.0 X 60 | 6.0 X 70 | ||
| 4.5 X 70 | 5.0 X 70 | 6.0 X 80 | |||
| 5.0 X 80 | 6.0 X 90 | ||||
| 5.0 X 90 | 6.0 X 100 | ||||
| 5.0 X 100 | 6.0 X 110 | ||||
| 5.0 X 120 | 6.0 X 120 | ||||
| 6.0 X 130 | |||||
| 6.0 X 140 | |||||
| 6.0 X 150 | |||||
| 6.0 X 160 | |||||
| 6.0 X 180 | |||||
| 6.0 X 200 | |||||

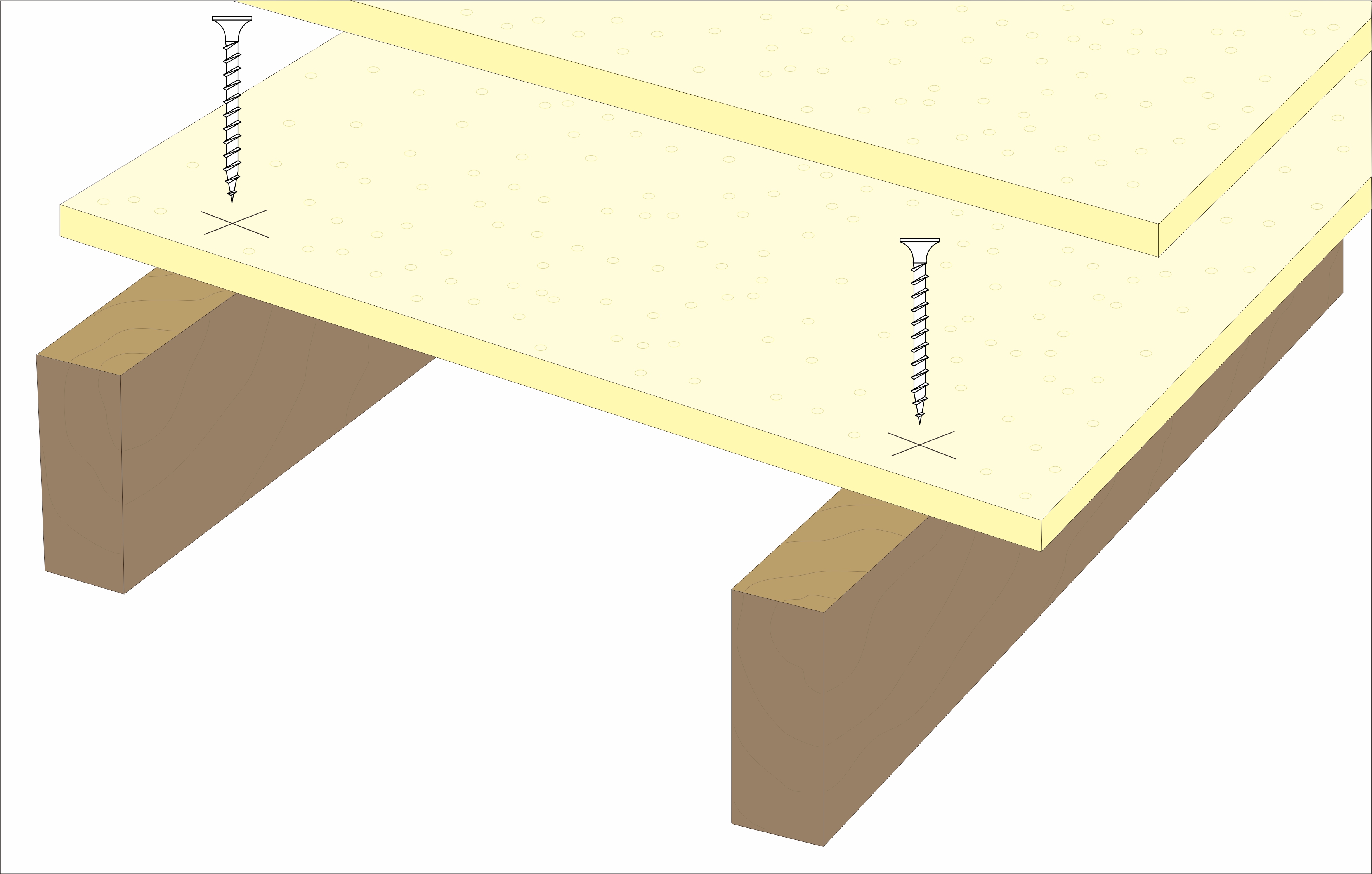

Installation diagram
‧ Suitable for chipboard.
