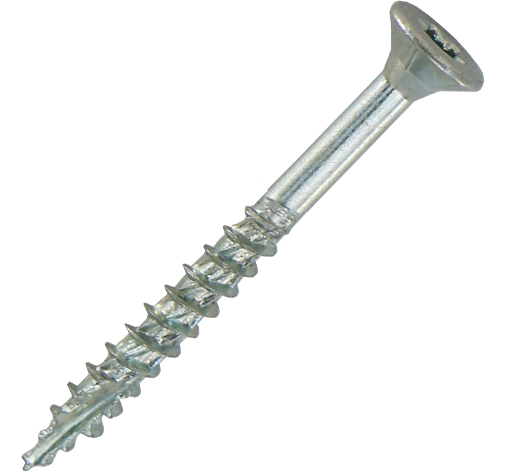

Double Flat Head 6 Spiral Milling Type17
- Material:C1022
- Coating:Zinc, Ruspert
| Dimensions (dXL) mm | |||||
|---|---|---|---|---|---|
| #8 X 1-1/4" | #9 X 2" | #10 X 3-1/2" | |||
| #8 X 1-5/8" | #9 X 2-1/2" | #10 X 4" | |||
| #8 X 1-8/4" | #9 X 3" | #10 X 4-1/2" | |||
| #10 X 5" | |||||
| #10 X 6" | |||||

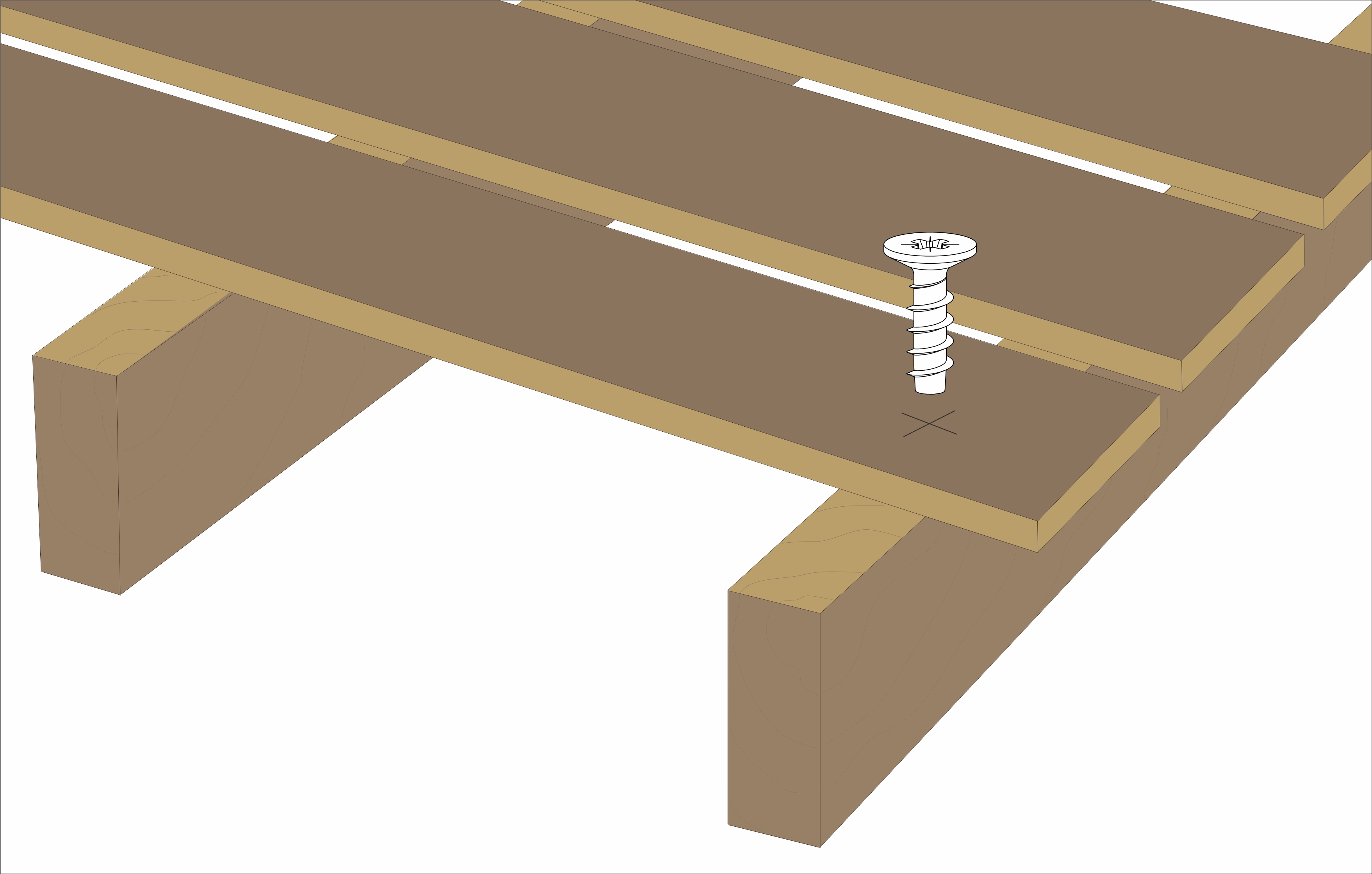

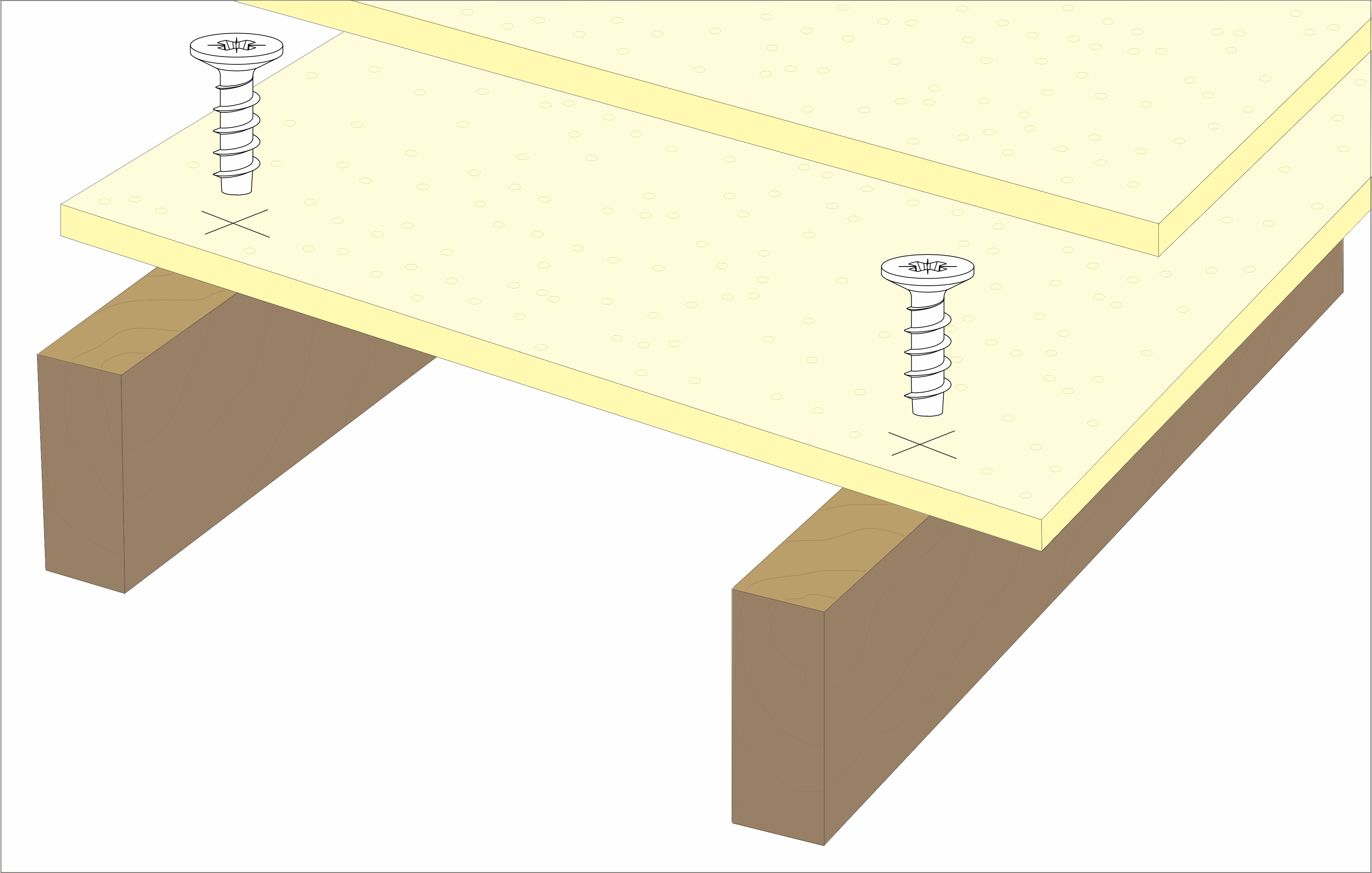

Installation diagram
| Dimensions (dXL) mm | |||||
|---|---|---|---|---|---|
| #8 X 1-1/4" | #9 X 2" | #10 X 3-1/2" | |||
| #8 X 1-5/8" | #9 X 2-1/2" | #10 X 4" | |||
| #8 X 1-8/4" | #9 X 3" | #10 X 4-1/2" | |||
| #10 X 5" | |||||
| #10 X 6" | |||||
