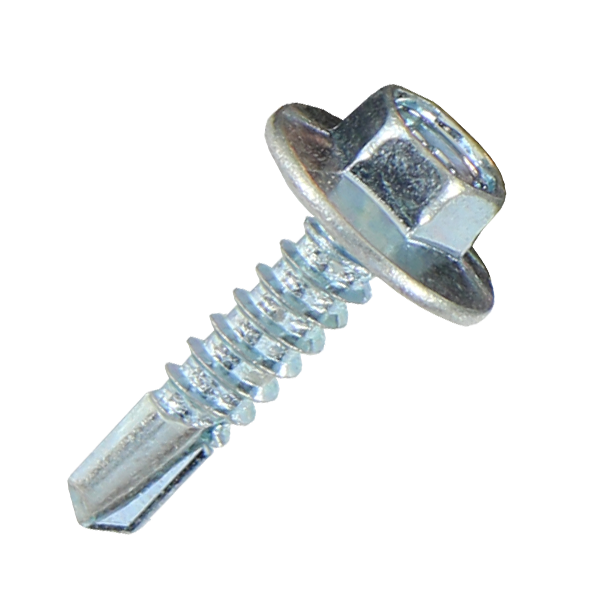

| Dimensions (dXL) mm | |||||
|---|---|---|---|---|---|
| 4.8 X 19 | 5.5 X 19 | 6.3 X 25 | |||
| 4.8 X 25 | 5.5 X 25 | 6.3 X 32 | |||
| 4.8 X 32 | 5.5 X 32 | 6.3 X 38 | |||
| 4.8 X 38 | 5.5 X 38 | 6.3 X 50 | |||
| 4.8 X 50 | 5.5 X 50 | 6.3 X 63 | |||
| 5.5 X 63 | 6.3 X 75 | ||||
| 6.3 X 90 | |||||
| 4.8 mm | 5.5 mm | 6.3 mm | ||||
|---|---|---|---|---|---|---|
| Torsional Strength (Lb/in) |
61 min | 96 min | 142 min | |||
| Case Hardness (Hv/0.3kg) |
560-730 | 560-730 | 560-730 | |||
| Drilling Time (Sec) |
7.0 | 11.0 | 13.0 | |||
| Drilling Thickness | 2+2 | 2+3 | 2+3 |

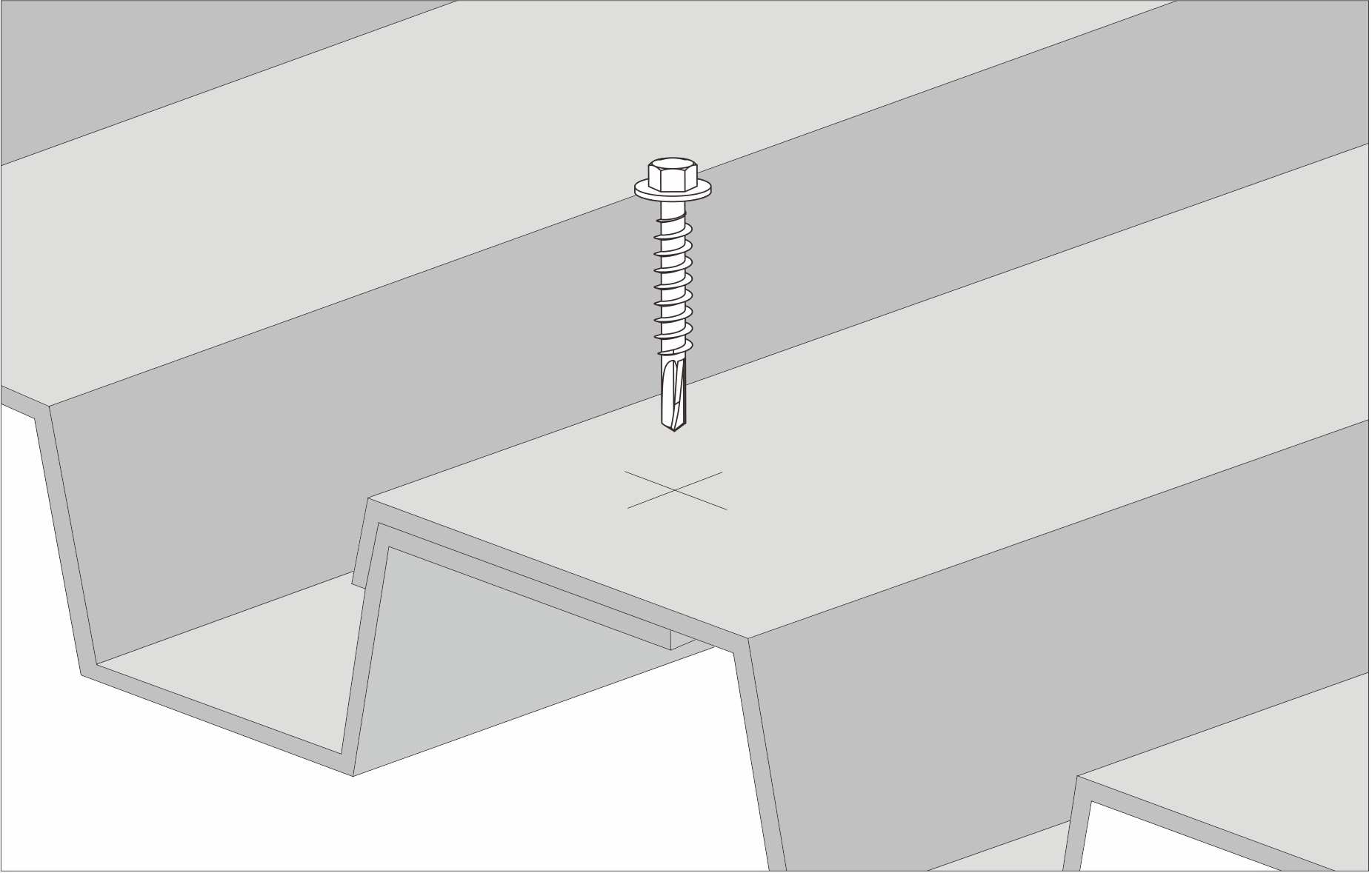

Installation diagram
‧ For steel to steel applications.
