| Dimensions (dXL) mm | |||||
|---|---|---|---|---|---|
| 4.8 X 20 | 5.5 X 19 | ||||
| 4.8 X 22 | 5.5 X 25 | ||||
| 4.8 X 28 | 5.5 X 35 | ||||
| 4.8 X 35 | 5.5 X 50 | ||||
| 4.8 X 60 | |||||
| 4.8 X 70 | |||||
| 4.8 X 75 | |||||
| 4.8 mm | ||||||
|---|---|---|---|---|---|---|
| Torsional Strength (Lb/in) |
56 min | |||||
| Case Hardness (Hv/0.3kg) |
560-730 | |||||
| Drilling Time (Sec) |
5.0 | |||||
| Drilling Thickness | 2+2 |

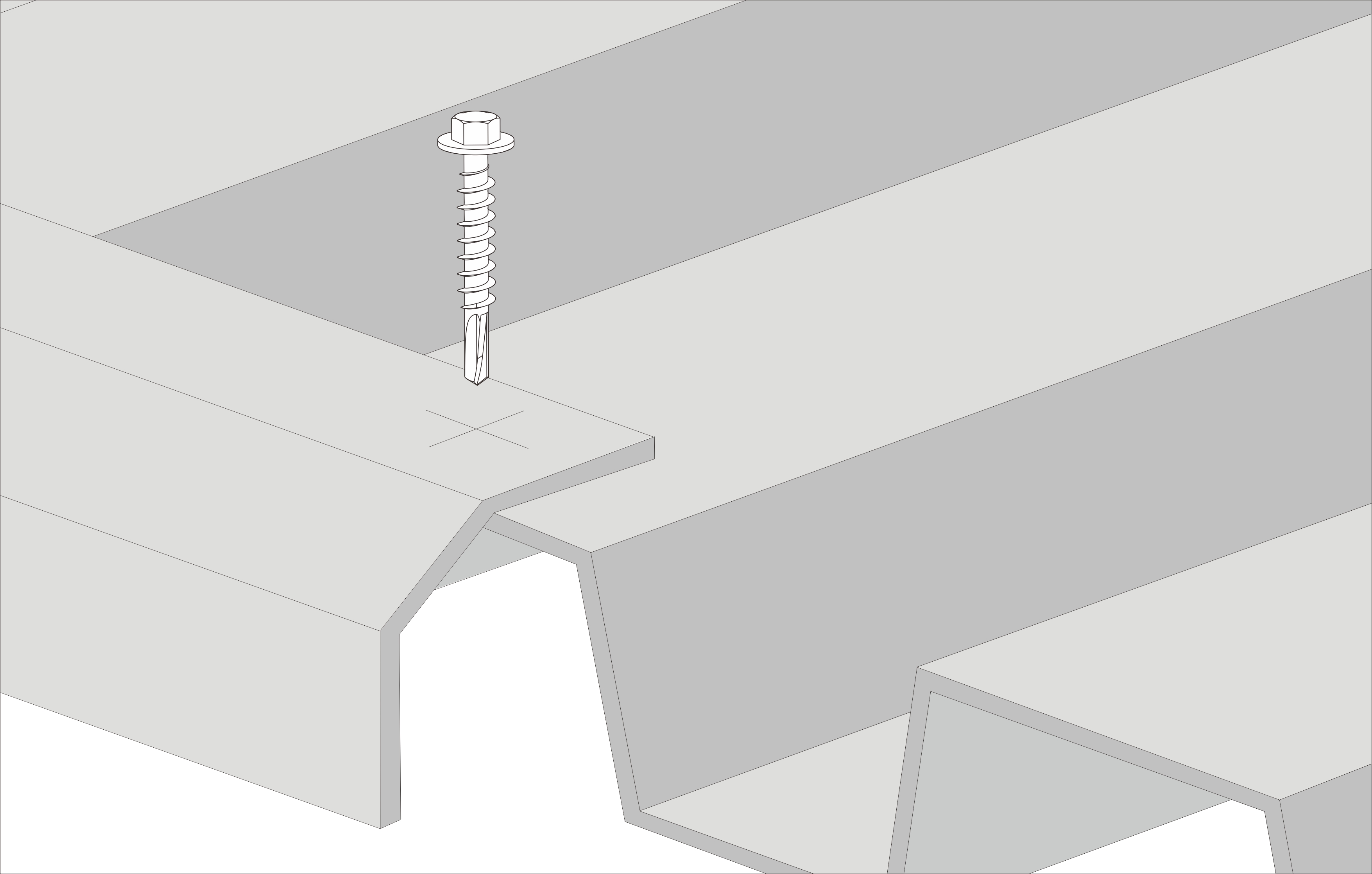

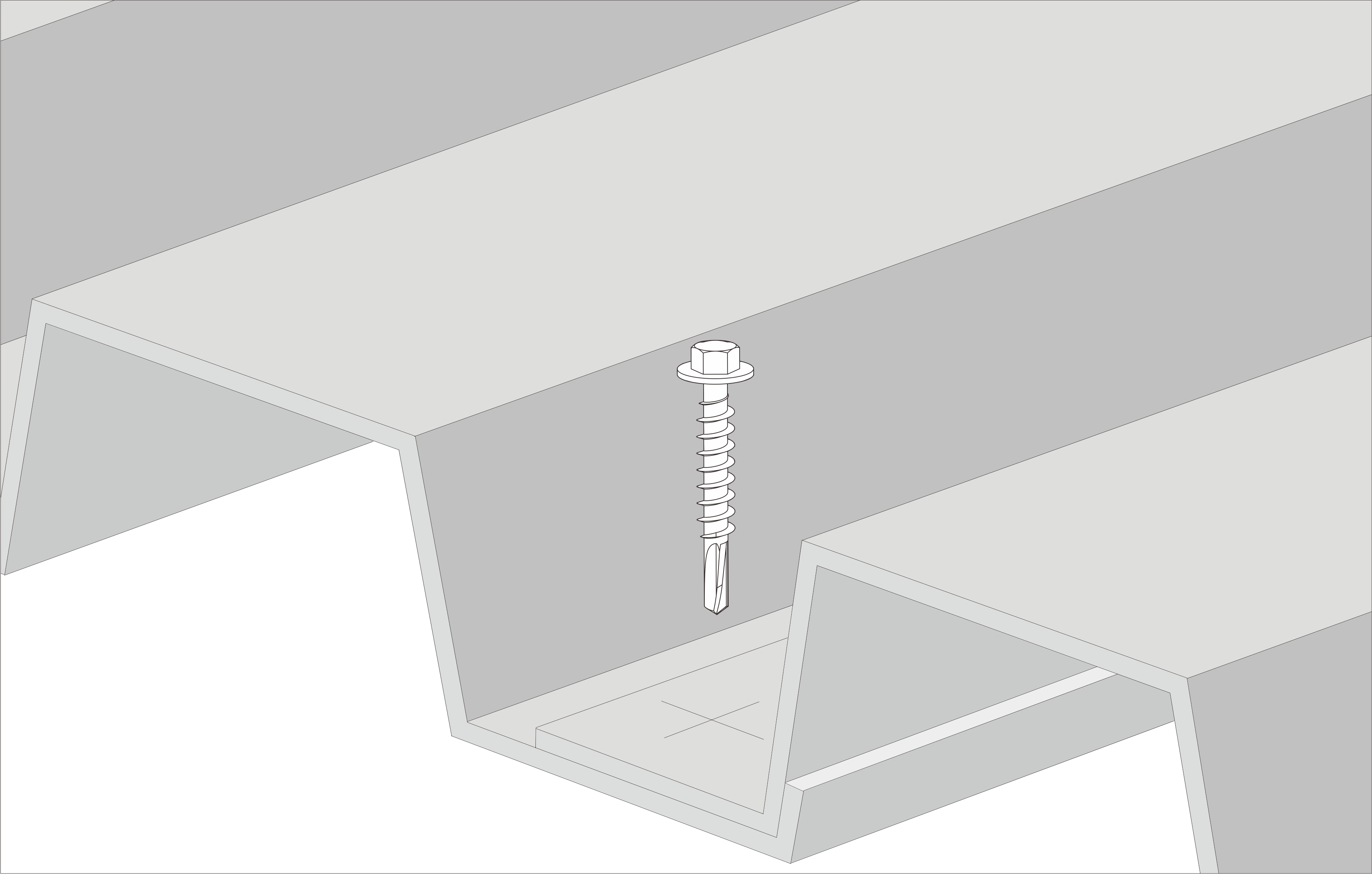

Installation diagram
‧ Fasten sheet metal to wall & overlap panels.
