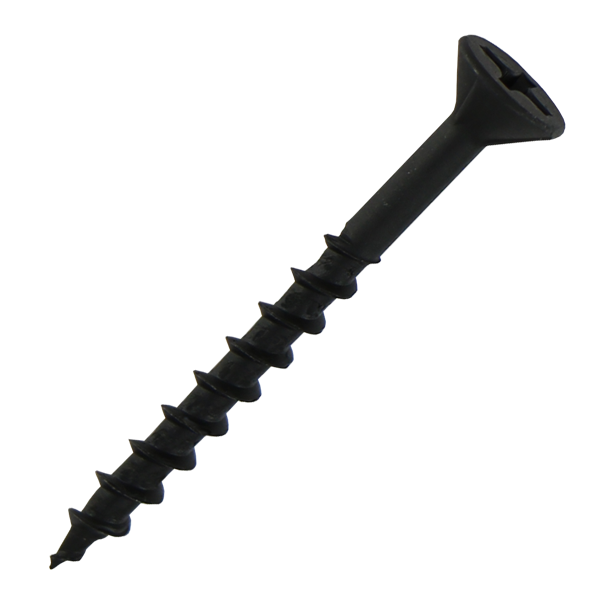

Bugle Head Coarse Thread
- Material:C1022
- Coating:Zinc, Black Phosphate, Grey Phosphate, Kaitex
| Dimensions (dXL) mm | |||||
|---|---|---|---|---|---|
| 3.5 X 19 | 3.9 X 25 | 4.2 X 32 | 4.8 X 32 | ||
| 3.5 X 25 | 3.9 X 32 | 4.2 X 38 | 4.8 X 38 | ||
| 3.5 X 32 | 3.9 X 38 | 4.2 X 50 | 4.8 X 50 | ||
| 3.5 X 35 | 3.9 X 41 | 4.2 X 55 | 4.8 X 63 | ||
| 3.5 X 41 | 3.9 X 50 | 4.2 X 63 | 4.8 X 75 | ||
| 3.5 X 50 | 3.9 X 55 | 4.2 X 75 | 4.8 X 90 | ||
| 4.2 X 90 | 4.8 X 100 | ||||
| 4.8 X 120 | |||||
| 4.8 X 130 | |||||
| 4.8 X 150 | |||||
| 3.5 mm | 3.9 mm | 4.2 mm | 4.8 mm | |||
|---|---|---|---|---|---|---|
| Torsional Strength (kg/cm) |
24 min | 28 min | 45 min | 65 min | ||
| Case Hardness (Hv/0.3kg) |
500-800 | 500-800 | 500-800 | 500-800 | ||
| Salt & Spray Test (hrs) |
48min | 48min | 48min | 48min |

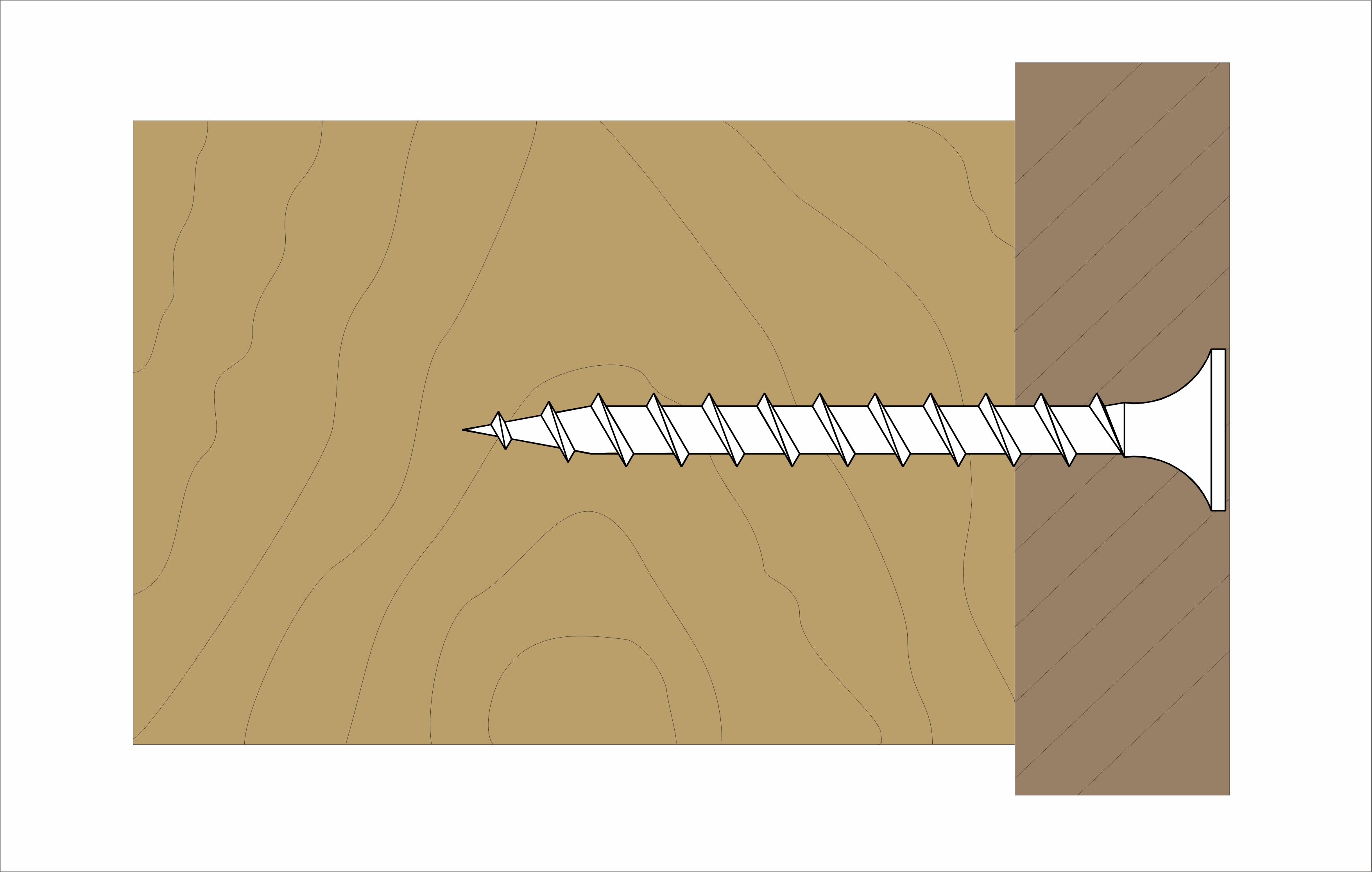

Installation diagram
‧ Drywall timber to timber framing.
